Pocatello Amateur Radio Club Repeater help page

PARC owns and operates two 2 meter FM voice repeaters, one is a remote base..   2 UHF repeaters / Remote Base radios
Kinport and Scout Mt. As well as an APRS digipeater and host PV-ares winlink didipeater.
heres (below) are some pictures and more detailed info about our repeaters,

Might I add, our repeaters / remote base radios are very unique. They are real radio equipment,  not internet radio,  they are Radio ,
any skip contacts are RADIO, not internet,  and as Radio, they are subject to the whims of the ionosphere.    best practice would be to LISTEN all the time,


Getting them built , and up on the mountains is just the beginning,  there a lot of maintenance,
antennas break,  batteries go dead with age, just paying the rent, putting on a new ROOF !!
This  that and the other. It's Not cheap , Please consider joining our club.

PARC   147.060mHz Scout Mt.   +600kHz Offset, 100Hz PL .
for more pictures 2008 work party  or  install 2002

Located 14 miles south of the intersection of I-15 and  Center street,  Exit  (69)    On the top of Scout Mountain.
It is open to all users,  It is solar powered.  It has NO  function other than a basic voice repeater.
The output power is about 2 watts to the antenna,

PARC Pays the US Forest Service over $120 a year to rent the mountain top location, your club membership is important in keeping this radio on the air

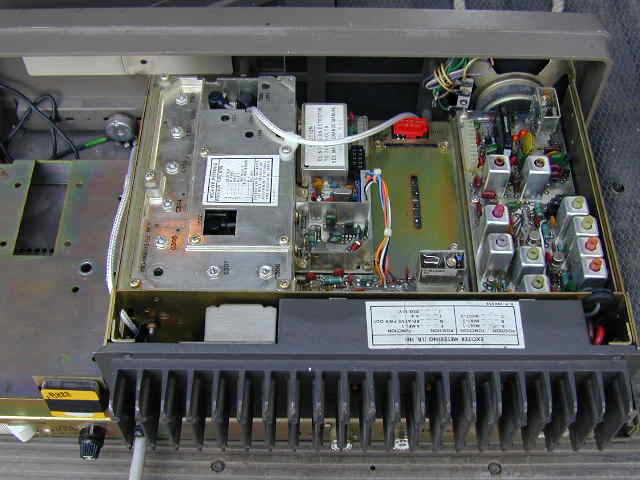

It is a GE Master Executive II  , installed 2002 repeater built by KØIP,	New antenna 2014 K9GP, AC7LI, KØIP     , antenna built by AC7LI & KØIP installed on tower by K9GP   HOWEVER  as of summer of 2020  this antenna failed  < OUCH >         see loop antenna below

 Homebrewed  Talking controller, QST  project    Feb 1997 issue (?)                  Cavities and charge controller inside shelter.
Talking controller built by Cindy KI7SG, the talker is the green board on
the bottom (center),, Cindy was about 17 years old when she made this.

-----------------------------------------------------------------------------------------------------------
this is the  temporary    antenna  on the 06        will need to be fixed in 2021

Before the second set of solar panels were installed Glen  K9GP getting ready to install ,

Solar array for charging the batteries,   There is NO commercial power on Scout Mt. This Repeater is 100% Solar Powered...... The top two panels were on site when we moved in. Bottom two panels donated by KØIP.  bracket/frame  to hold panels made by and installed by  K9GP, a big job !


END END END of 06 information

147.360mHz repeater / remote base

Mt. Kinport  located 6 miles SW of the I-15 Center Street Exit (69) at 7200 feet.
It operates on 147.360 +600kHz offset  ... 100Hz Pl required

ITS a standard repeater unless the link is turned on,

This repeater has a 10 meter FM Link on 29.600mhz

29.600mHz is 10 meters.. This is the FM Calling frequencies.
10 meters does have world wide propagation (at times),  so if your setting around, with nothing to do turn the link on and see if anything is bouncing off the ionosphere .

Call CQ     ie   CQ CQ CQ  this is  (your call)  over.    remember your signal might be heard around the world.
try to give your call SLOW and concise enough to be understood,  the propagation MIGHT be perfect.  But usually there is a large amount of fading (QSB) ,
so keep your transmissions short and clear.

Stations is Japan  have NO idea where Pocatello is,  !!!!    but probably have some idea where Idaho is,    if you lose a station because of fading (QSB) ,  I suggest you wait maybe 15 seconds and call that station again ,
using his call letters and your call letters and ask if he copies now, be quick  ,,,  chances are, if you cant here him, he cant hear you ,   keep it short
and remember the DX is usually talking in english which is a for foreign language for them..  keep it simple.

How to tell which band a signal is on
if  the link is on
a station on 10 meters will cause a Hi & Low Beep,  "like" a  BEEP BOOP sound.. ,  at the end of 10 meter transmissions
a 2 meter station will cause a beep beep sound  at the end of a transmission (same tone, twice) ,  Which also indicates the 3 minute time-out  timer has been reset.



    When a Link is on, any and all traffic occurring on 2 meters is transmitted on 10 meters as well as two meters
    if someone out there in "radio land"  hears you, you'll probably have breaking station wanting to take advantage of the propagation.
     likewise, any traffic on 10 meters is repeated to 2 meters.

   The 10 meter link equipment is a  GE Master Executive II mobile radio, running  around 60 Watts, to a Dipole antenna,


Codes   010 turns 10 meters  ON,
            000 turns OFF 10m

other test codes   123  tests your audio.
Press 123, un-key your radio, repeater says "ready", Key your radio and make a test transmission, when you unkey it will be play back.


ONCE turned ON, it will stay ON, until its turned off,

Who paid for a new roof, we did,  your dues did,
 here's   AD7UI, N7FLM, W7EKG   2012 installing a new roof             The APRS will remain in this building


In 2019 we moved to a new building    In 2020 we repaired the roof,   repeater had many problems,  here's our clubs youngest member helping out
 --our two meter antenna is on the center telephone pole-                                      KJ7KPP  looking a little lost !!



N7FLM and N7TZK  working the tar gun's

more pictures at    https://photos.google.com/share/AF1QipMqoz7H5eHFGGgnfXlAalBHmD-w17mxY0UGoA2fLEzUyxZksPrOM654DYEe4JxqaA?key=Q0JJblluWVMxdl9lekFPNmo0UVV1Wk00Nk5iRS1n

or
      https://photos.google.com/share/AF1QipP30HacBGfGxvCAKDf7Svb_pPdqqNKC9oi9E5bAWJCjQCKdcvkJeX8dXxYNPpFVsw?key=WThEcWhtZ1poNXZ2MENxQzQ5MVNEcjFLamVxN0hR

442.100 mHz.  repeater / remote base.  - Kinport ,  same location as the 147.36 repeater

This was a gift from K7NEY (sk) to  PARC..                   it uses  Kenwood commercial  radios,    (first generation)
the  442 radio is a model TKR-850   this is linked to a Kenwood TKR-750 VHF radio, which is 'frequency agile"  (16 channels)

WE have NOT finished programming the VHF output  SO
for now its linked to 146.52, the 2 meter simplex national calling frequency.

If you are talking on  447.1 the input to the repeater, it is repeated to  442.1 the repeater output frequency,, AS WELL as to  146.52..   if there is traffic on 156.52  it is heard on  442.1..



Coming Soon

another UHF repeater 448.400,


How to tell which band a signal is on
if  the link is on .. and it is ON all the time unless you press 000 , at which time is should announce 6 meter link OFF, its programmed to come back on in one hour.
a station on 6 meters will cause a Hi & Low Beep,  "like" a  BEEP BOOP sound.. ,  at the end of 6 meter transmissions
a 2 meter station will cause a beep beep sound  at the end of a transmission (same tone, twice) ,  Which also indicates the 3 minute time-out  timer has been reset.



    When a Link is on, any and all traffic occurring on 448.400  is transmitted on 6 meters as well as UHF meters
    if someone out there in "radio land"  hears you, you'll probably have a breaking station wanting to take advantage of the propagation.
     likewise, any traffic on 6 meters is repeated to UHF meters.  This is a two way radio,,

   The 6 meter link equipment is a  GE Master Executive II mobile radio, running  around 60 Watts, to a whip  antenna mounted on the repeater building roof.. TIN, for a ground plain,

A BIT OF HISTORY
The PARC 06 repeater was originally installed on Mt Kinport in 1976, in a building
that was eventually bulldozed about 25 years ago,  we were ask to move into a building that was
at that time owned by the cable TV company.

how many repeaters do you think were in Idaho in 1977 ?

Pocatello must have missed the cut off date for publication of this book.
click the cover picture for the answer ...

++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
